| Material | Pure tungsten |
| Specification | Ф(10-500)*H(10-750)*WT(8-35)mm |
| As per customer’s drawing | |
| Special Type: As per customer’s drawing | |
| Density | Sintering :≥17.6g/cm3 |
| Forging: ≥18.5g/cm3 | |
| Surface | Machined surface |
| Grade | W-1 |

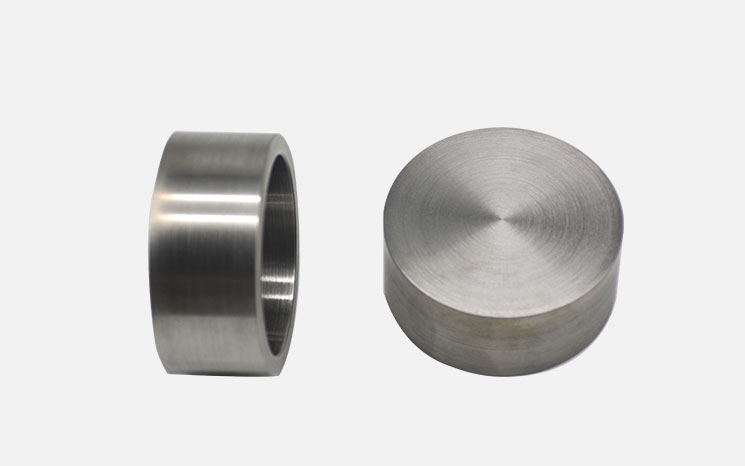

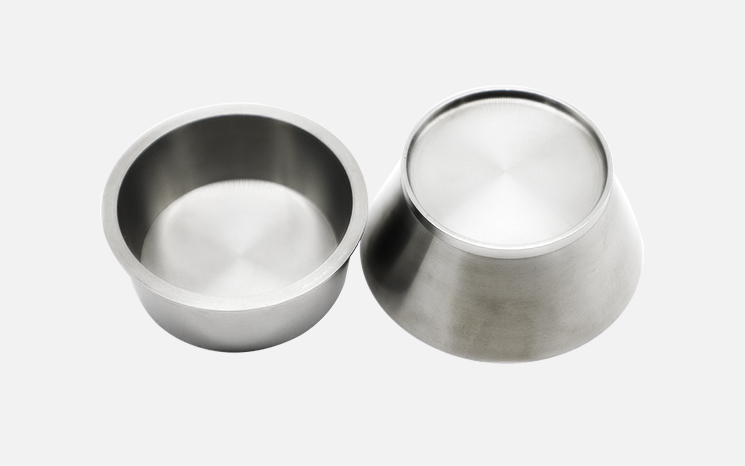

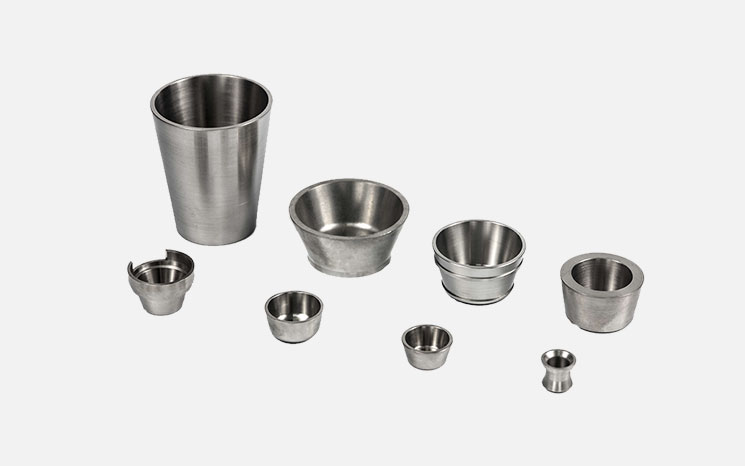

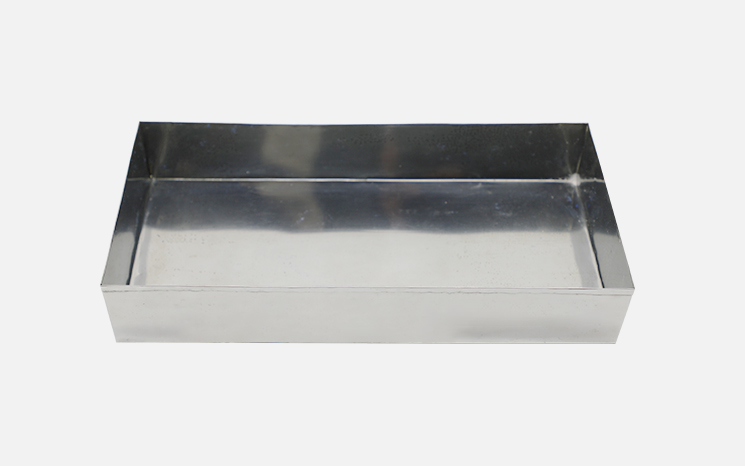

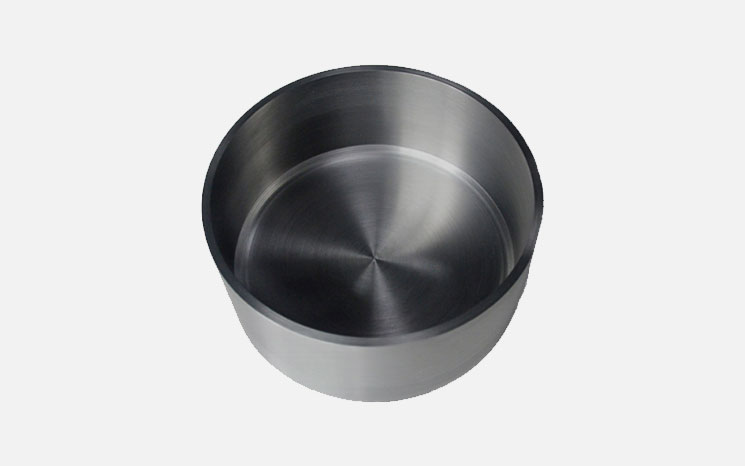

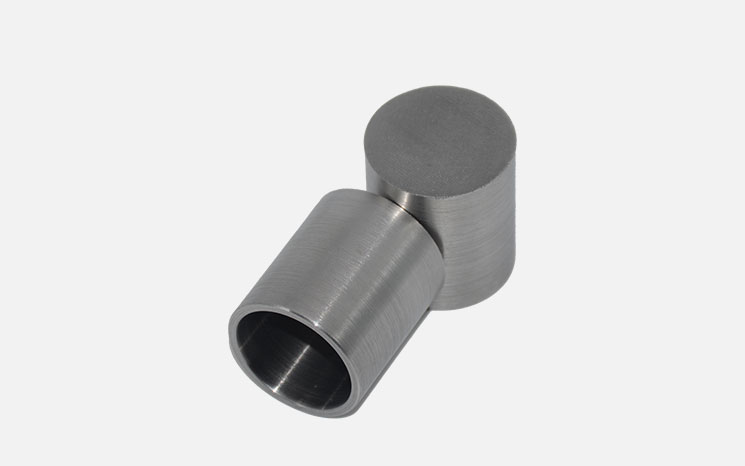

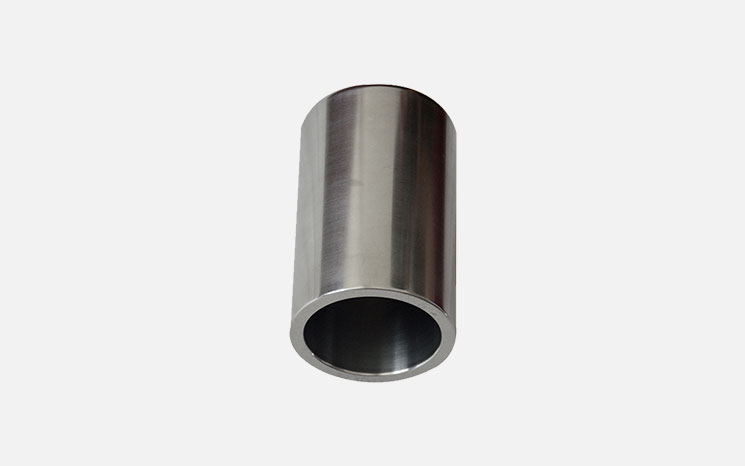

Tungsten crucible and other parts can be used for sapphire crystal growth and rare-earth melting due to their high temperature resistance, low pollution and other excellent characteristics.
1. Purity :W≥99.95%；
2. Density：≥18.5g/cm3；
3. Maximum ambient temperature：2400℃。
Forging tungsten crucible| Purity | Density | Specifications | Tolerance | Wall thickness | Surface roughness | ||
| 99.95% | ≥19.35g/ cm3 | Diameter(mm)10-500 | Height（mm）10-750 | Diameter tolerance+/-5.0 | Height tolerance+/-5.0 | 8-20 | Ra=1.6 |
| Purity | Density | Specifications | Tolerance | Wall thickness | Surface roughness | ||
| 99.95% | ≥19.35g/ cm3 | Diameter(mm)10-500 | Height（mm）10-750 | Diameter tolerance+/-5.0 | Height tolerance+/-5.0 | 8—20 | Ra=1.6 |
You can enter your detailed information and needs in the following forms ,such as your name, phone NO.,Email address, Once received your message we will contact you as soon as possible.
